Product details of the precision small parts turning

Quick Detail

Top-quality details perfectly shown on Chengshuo Hardware precision small parts turning. We continuously monitor and adjust the production process to ensure that the product quality meets the policy requirements of customers and the company. precision small parts turning of Chengshuo Hardware is widely used and has a wide range of applications. Thanks to our cutting-edged technology, precision small parts turning is produced in high quality.

Product Description

More detailed information on precision small parts turning is shown for you at below.

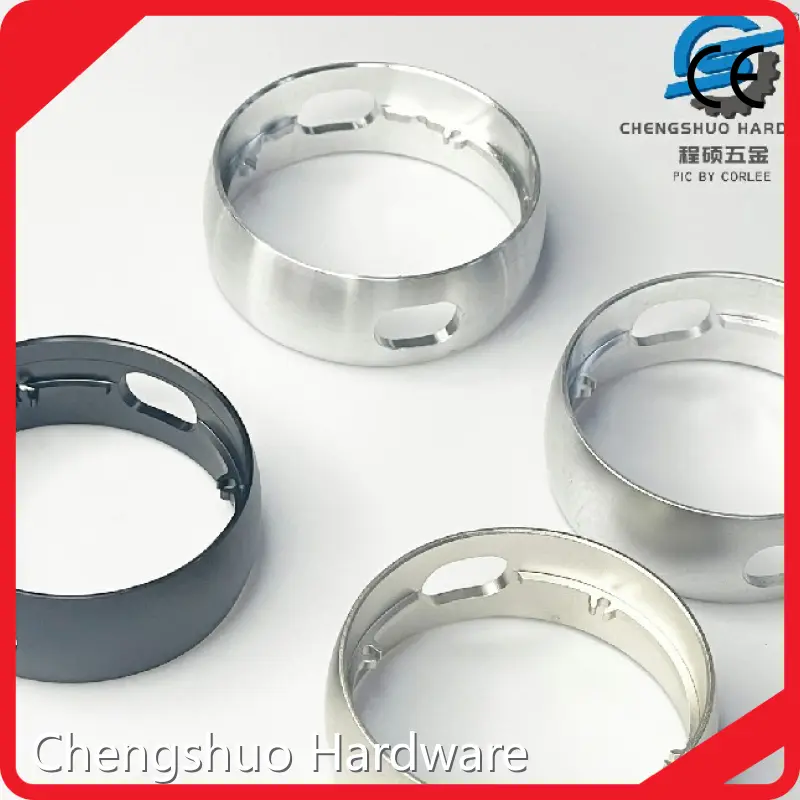

cs03 (2)~1

cs03 (5)~1

cs03 (6)~1

cs03 (9)~1 (2)

cs03 (10)~1

Product processing design

Design of processing steps:

1. Preliminary precision extrusion molding of raw materials

2. Processing of rough prototype lathe department

The first process designed by Supervisor Mr Li-Five axis lathe machining department

◆ T01 inner hole opening coarse

◆ T02 inner hole precision machining, achieving inner diameter size

◆ T03 external precision machining, achieving outer diameter dimensions

3. CNC department processing

The program designed by Supervisor Mr Liang- CNC Milling Center Department

◆ CODE 9The cutting tool is a flat blade ED4

◆ CODE 17 cutting tools are flat ED6 medium thick

◆ CODE 18 cutting tools are flat ED6 light

◆ CODE 19 tool is a chamfering knife D4C90 degree chamfering knife

4. Treatment: Anodizing

5. QC Inspection

◆ Quality department conducts precise inspections on dimensions and appearance

cs03 (2)~1

cs03 (5)~1

cs03 (6)~1

cs03 (9)~1 (2)

cs03 (10)~1

Departmental linkage production

This project is a combined production and processing of turning and milling by the Cheng Shuo team, with high requirements for the appearance of the product. PMC and quality supervisor work together to manage the project.

Difficulties In Interviewing Project Leaders

◆ The project requires high precision and requires engineers from various departments to strictly control tolerances to ensure product compatibility



◆ The appearance components of 2 electronic consumer goods require a high level of anodizing treatment effect and are individually packaged in vacuum formed boxes
